Class 12 Computer Networks Important Questions 5 Marks
Application-based / Competency-Based Questions – Computer Networks
Question 1:
‘Swabhaav’ is a big NGO working in the field of Psychological Treatment and Counselling, having its Head Office in Nagpur. It is planning to set up a center in Vijayawada. The Vijayawada Center will have four blocks – ADMIN, PSYCHIATRY, PSYCHOLOGY, and ICU. You as a Network Expert, need to suggest the best network-related solutions for them to resolve the issues/problems mentioned in questions (i) to (v), keeping the following parameters in mind: [CBSE 2025 – CS 083]
Block to Block distances (in meters):
| From | TO | Distance |
| ADMIN | PSYCHIATRY | 65 m |
| ADMIN | PSYCHOLOGY | 65 m |
| ADMIN | ICU | 65 m |
| PSYCHIATRY | PSYCHOLOGY | 100 m |
| PSYCHIATRY | ICU | 50 m |
| PSYCHOLOGY | ICU | 50 m |
Distance of Nagpur Head Office from Vijayawada Center = 700 KM
Number of Computers in each block is as follows:
| Block | No. of Computers |
| ADMIN | 16 |
| PSYCHIATRY | 40 |
| PSYCHOLOGY | 19 |
| ICU | 20 |
- (i) Suggest the most appropriate location of the server inside the Vijayawada Center. Justify your choice.
- (ii) Which hardware device will you suggest to connect all the computers within each block of Vijayawada Center?
- (iii) Draw a cable layout to efficiently connect various blocks within the Vijayawada Center.
- (iv) Where should the router be placed to provide internet to all the computers in the Vijayawada Center?
- (v) (a) The manager at Nagpur wants to remotely access the computer in Admin block in Vijayawada. Which protocol will be used for this?
OR
(b) Which type of Network (PAN, LAN, MAN, or WAN) will be set up among the computers connected with Vijayawada Center?
Answer:
(i) PSYCHIATRY, Because it has more computers..
(ii) Switch

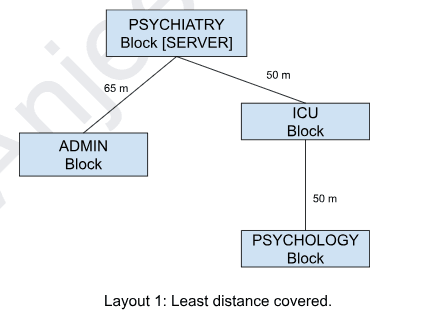

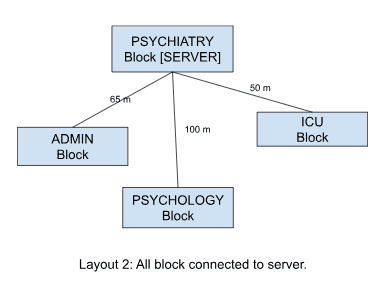

(iii) Suggested Cable Layout is
Layout – 1
(iv) PSYCHIATRY Block, because it has Server.
(v) (a) Telnet
OR
(b) LAN
Question 2
XYZ Technologies, Hyderabad is a company that deals with data science and AI projects, They have different divisions ADMIN, SALES, PRODUCTION and SERVICE. [CBSE 2025 – IP 065 ]
The layout of the Hyderabad branch is:
The management wants to connect all the divisions as well as the computers of each division (ADMIN, SALES, PRODUCTION and SERVICE).
Distance between the divisions are as follows:
| ADMIN to SALES | 69 m |
| ADMIN to PRODUCTION | 84 m |
| ADMIN to SERVICE | 60 m |
| SALES to PRODUCTION | 110 m |
| SALES to SERVICE | 135 m |
| PRODUCTION to SERVICE | 90 m |
Number of computers in each division:
| Division | Number of Computers |
| ADMIN | 40 |
| SALES | 75 |
| PRODUCTION | 120 |
| SERVICE | 20 |
Based on the above specifications, answer the following questions:
- (i) Suggest the topology and draw the most suitable cable layout for connecting all the divisions in the Hyderabad office.
- (ii) XYZ Technologies is having its head office in USA. Out of LAN, MAN, and WAN, which kind of network will be created to connect Hyderabad office with USA office? Justify your answer.
- (iii) Suggest the division for the placement of server. Explain the reason for your selection.
- (iv) Suggest the placement of Switch/Hub with justification.
- (v) Where will a repeater be placed in the suggested network layout? Justify your answer.
Answer:
(i) STAR Topology
(ii) WAN. Because the distance is more than 40 km.
(iii) PRODUCTION. Because it have maximum number of computers.
(iv) Switch: Switch must be placed at every division. Because Switch helps in creating segmented LAN. All division have more than 2 computers.
(v) Repeater is required between PRODUCTION and SALES, due the distance is more than segment length 100 m.
Optional: Repeater MAY be placed between SERVICE and PRODUCTION, because distance is 90 m, near to 100 m.
